Reference > Gateway properties

Only available in Diafaan SMS Server - basic and full editions.

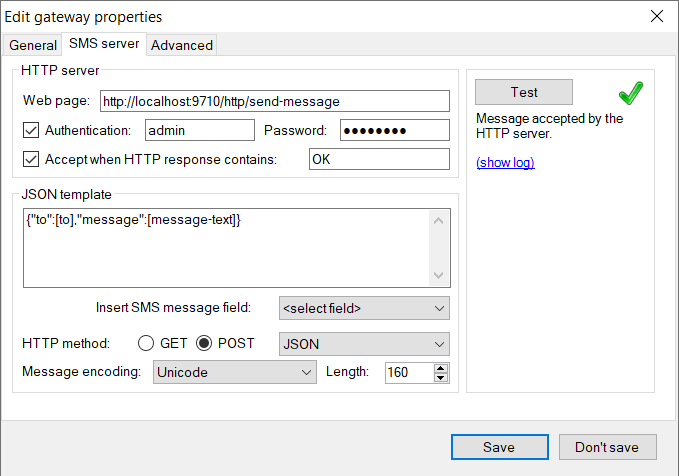

HTTP gateway properties

ShowAdvancedOptions

Show advanced options in the settings for the specific HTTP gateway. This also adds a link to edit the gateway script.

Advanced properties

LogCommunicationToFile

Log all internet communication to file. Use this option only if you encounter problems with the connection to your SMPP account. If enabled, the status windows of the SMPP gateway provides a link to the location on you hard disk where the file is stored.

MaximumBatchSize

The maximum number of messages this gateway will process in one batch. If this value is higher than one and a number of messages are sent at the same time, the gateway loads multiple messages concurrently. This increases the speed in which the messages are sent.

NumberTemplate

The number template can be used to translate the number from one format to another.

For more information see Use number templates.

SourceAddressTemplate

The number template can be used to translate the From field from one format to another.

For more information see Use number templates.

QuietHours

A list of 24 hour numbers (separated with semicolons) when sending messages with this gateway is paused. The hour number can be appended with .1, .2, .3 or .4 to specify the first, second, third or fourth quarter of the hour. If the messages cannot be sent with another gateway, they stay in the send queue until the quiet hours are over and this gateway resumes message sending.

00;01;23 pauses message sending from 23:00:00 to 01:59:59.

12.1;12.2;18.1;18.2 pauses message sending from 12:00:00 to 12:29:59 and from 18:00:00 to 18:29:59.

EnableHTTPCallbacks

Enable or disable HTTP callbacks for this gateway. This option is only available when the HTTP callback option is enabled in the general options.
